INDOOR CLEAN AIR ADVANCE TECHNOLOGY
|

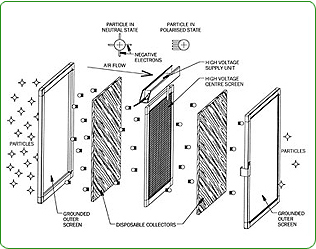

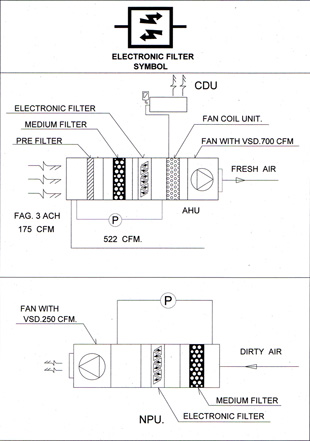

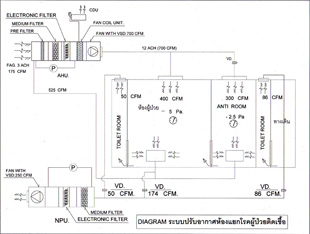

Non-Ionizing Electronic Air Filtration Diagram showing principle of polarisation of particles passing over  filter |
 |
|
PATENT#0301004040,#0401004853
#0602001386
|
Indoor Clean Air Advance Technologies
Non-ionizing, enhanced-media polarise air

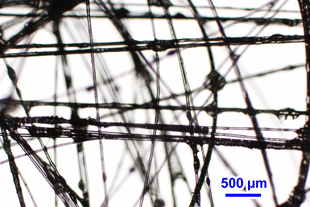

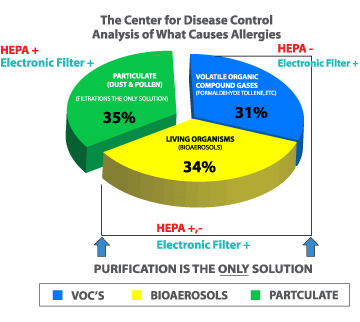

A revolutionary new concept in the filtration of micron and nano particles. Suitable for residential, commercial and industrial applications, the Alpine polarising air filter can easily adapt to almost any air-handing system. |
| ELECTRICAL SPECIFICATIONS |
| Operating voltage(Normal) |
24VAC,50/60Hz |
| Operating voltage range |
18V(min) to 30V(max) |
| Electrical input |
floating |
| Power consumption@24VAC |
16VA |
| Electrical connection |
PG-06 plug C/W 8' Long(2.5M) Hook-up cord |
| White stripe insicates centre |
pin for AC use,+vs for DC use |
| Secondry High Voltage |
6.7KV+/-0.5KV@1000MOhms.
Internal Impedance |
| FILTER PERFORMANCE |
| PRESSURE DROP |
0.05 "WG @ 150 C.F.M.
0.07 "WG @ 300C.F.M.
0.10 "WG @ 400 C.F.M.
0.12 "WG @ 600 C.F.M.
0.17 "WG @ 800 C.F.M.
0.19 "WG @ 1000 C.F.M.
0.22 "WG @ 1200 C.F.M.
0.27 "WG @ 1600 C.F.M.
0.32 "WG @ 2000 C.F.M. |
| EFFICIENCY |
100% (1.0 Micron)
100% (0.3 Micron)
100% (0.01 Micron)
99.50% (0.005 Micron)
99.75% (0.0025 Micron)
99.87% (0.00125 Micron)
99.93% (0.000625 Micron) |
| Average synthetic duct weight arrestance |
: 79% |
Ashrae dust holding capacity per sq.ft
TIS. 1516-2549
IEC 335-2-65(1993-06) |
: 20g |

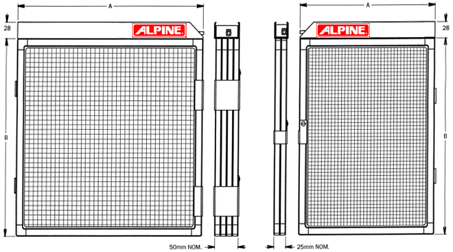

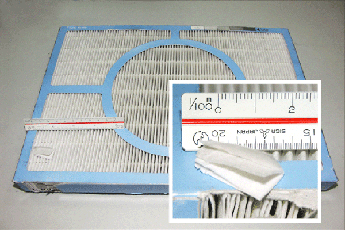

| DIMENSION |
DIMENSION
(Inches)(Centimetre) |
W
|
H
|
| MINIMUM |
8 (20.3)
|
24 (60.2)
|
| MAXIMUM |
10 (25.4)
|
30 (76.2)
|
| NOTES |
1. Custom size are available.
2. Sizes larger than min/max may be possible.
3. Ask for quotation.
For eease of of fit. filters are supplied 0.25" (0.63mm)
smaller on dims W&H than ordered. |
"This study was made possible through financial
support from TRF Master Research Grant
(TRFMAG) Grant Number MRG-OSMEP505S174
that supported from Thailand Research fund."
| OPTION |
Electronic filter maintenance 2,000 Hr
Electronic filter alarm 1 Second Until Reset
THAI INDUSTRIAL STANDARD
TIS.1516-2549
IEC 335-2-65(1993-06) |
|

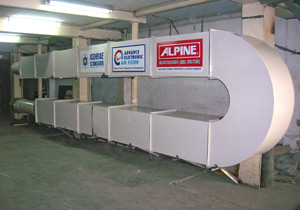

The Wind Tunnel
